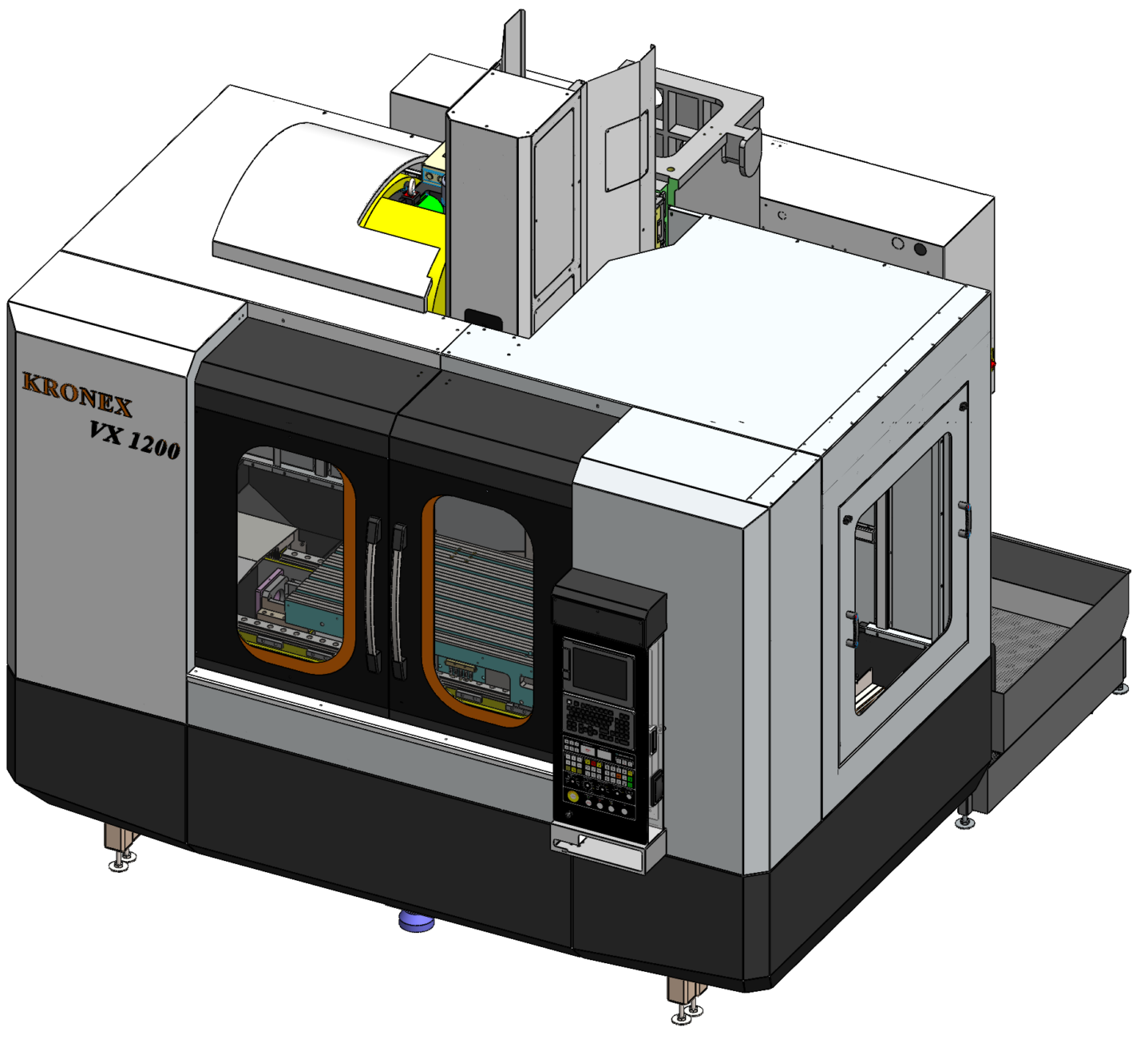

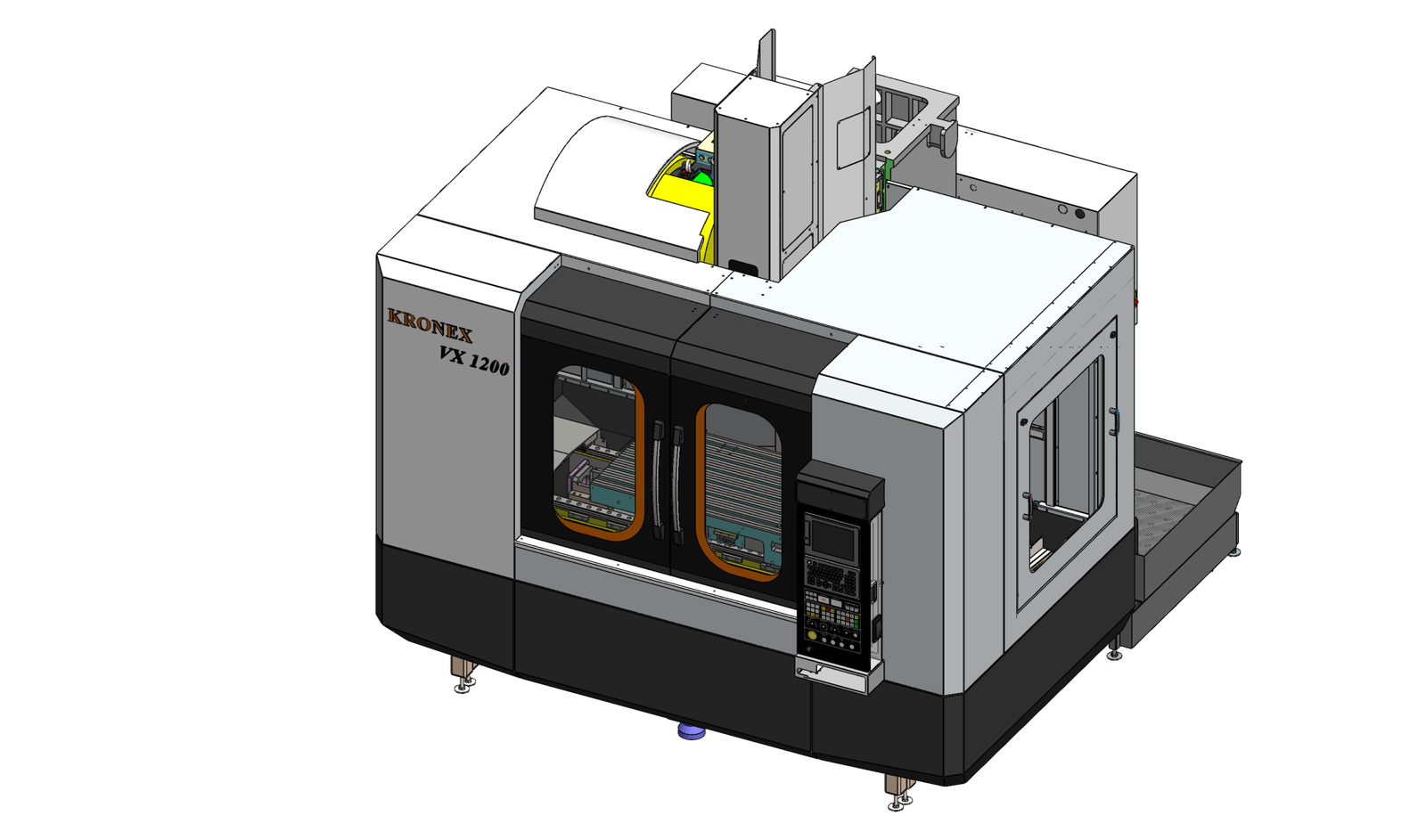

Kronex Series
Vertical Machining Center
KRONEX SERIES
The KRONEX SERIES by THERMAFIELD CNC combines advanced CNC technology with precision engineering to deliver high-performance machining for demanding production environments. Designed for speed, accuracy, and reliability, the machine helps manufacturers achieve consistent results while improving productivity and operational efficiency.
Advanced CNC Machining for Modern Manufacturing
The KRONEX SERIES is engineered to provide a reliable machining platform for applications requiring high precision, productivity, and consistent performance. Its robust construction, servo-controlled motion, and user-friendly CNC control system make it suitable for a wide range of manufacturing requirements.
Key Features
KRONEX SERIES MACHINE SPECIFICATIONS
| Perameters | VX600 | VX800 | VX1000 | VX1200 | VX1400 |
|---|---|---|---|---|---|
|
CAPACITY |
|||||
|
X Axis |
600 |
800 |
1000 |
1200 |
1400 |
|
Y Axis |
400 |
520 |
600 |
600 |
700 |
|
Z Axis |
400 |
550 |
600 |
600 |
700 |
|
Table Top to Spindle Face |
100 to 500 |
100 to 650 |
150 to 750 |
150 to 750 |
150 to 850 |
|
Spindle Centre to Column front face
|
480 |
560 |
640 |
640 |
800 |
|
TABLE |
|||||
|
Table Size |
810×440 |
1000×550
|
1200×650 |
1400×650 |
1600×750 |
|
Table Slot (No/Size/Pitch) |
3/18/125 |
5/18/100 |
5/18/100 |
6/18/100 |
5/18/125 |
|
Max load on table(KG) |
400 |
500 |
1000 |
1300 |
1500 |
|
Floor to table top(MM) |
900 |
950 |
950 |
950 |
1030 |
|
SPINDLE POWER STANDARD |
|||||
|
Max Spindle Speed(RPM) |
8000 |
8000 |
8000 |
8000 |
8000 |
|
Spindle Nose |
BBT-40 |
BBT-40 |
BBT-40 |
BBT-40 |
BBT-40 |
|
Bearing Diameter(MM) |
60 |
70 |
70 |
70 |
70 |
|
Spindle Power Siemens(KW) |
7.5/5.5 |
15/11 |
15/12 |
15/12 |
15/12 |
|
Spindle Power Fanuc(KW) |
7.5/5.5 |
11/7.5 |
15/11 |
15/11 |
15/11 |
|
Spindle Power Mitsubishi(KW) |
7.5/5.5 |
11/7.5 |
15/11 |
15/11 |
15/11 |
|
Fanuc Torque (Continue)(NM) |
26 |
35.8 |
35.8 |
35.8 |
70 |
|
Fanuc Torque upto (Max)(NM) |
77 |
105 |
105 |
105 |
130 |
|
Siemens Torque (Cont.)(NM) |
30 |
70 |
70 |
70 |
70 |
|
Siemens Torque upto (Max)(NM) |
60 |
140 |
140 |
140 |
140 |
|
FEED RATE |
|||||
|
Rapid Traverse (X-Y-Z)(M/MIN) |
25 |
25 |
25 |
25 |
20 |
|
Cutting Feed Rate (X-Y-Z)(M/MIN) |
10 |
10 |
10 |
10 |
10 |
|
ATC (AUTOMATIC TOOL CHARGER) |
|||||
|
Tool Capacity(NOS) |
24 |
24 |
24 |
24 |
24 |
|
Tool Max Dia (With adj. Tool)(MM) |
80 |
80 |
80 |
80 |
80 |
|
Tool Max Dia (Without Adj. Tool)(MM) |
150 |
150 |
150 |
150 |
150 |
|
Max Tool Length(MM) |
200 |
250 |
250 |
250 |
250 |
|
Max Tool Weight(KG) |
8 |
8 |
8 |
8 |
8 |
|
ACCURACY |
|||||
|
Positioning(MM) |
0.01 |
0.01 |
0.015 |
0.015 |
0.015 |
|
Repeatability(MM) |
0.005 |
0.005 |
0.007 |
0.007 |
0.007 |
|
OTHER DATA |
|||||
|
Height(MM) |
2650 |
3050 |
3220 |
3200 |
3250 |
|
Floor Scale(MM) |
2775*1875 |
2900*2175 |
3000*2850 |
3100*2500 |
3150*3750 |
|
Machine Weight (Apprx)(KG) |
4200 |
6000 |
6800 |
8000 |
8900 |
